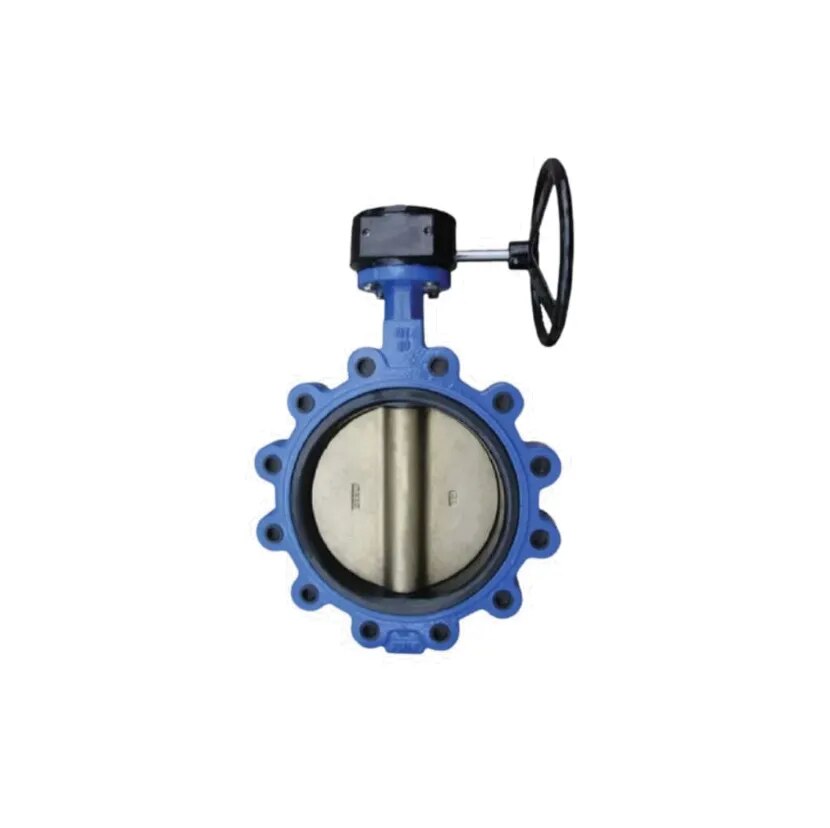

Lug Type Butterfly Valves
In stock
Description
Lug Type Butterfly Valves Manufacturer
A lug type butterfly valve is a butterfly valve designed with threaded lugs (metal inserts) around the valve body. These lugs allow the valve to be bolted directly to flanges on both sides, making it possible to disconnect one side of the pipeline while keeping the other side sealed.
Specifications
| Technical Detail | ⬇️ |
|---|---|
| Operation | Lever, Gear, Bare Stem Operated |
| Lining | Nitrile, Neoprene, EPDM, Hypalon, Silicon |
| End Connection | Lug Type |
| Oponal Disc | Cast Iron Cast Steel / CF8 / CF8M |
| Design & Mfg. Standard | BS 5155 / API 609 / MSS SP-67 |
| Material of Composition | Cast Iron Cast Steel / CF8 / CF8M |
| Size | 2" to 16" (DN50 to DN400) |
| Testing Standard | BS 6755-1 / API 598 / AWWA C- 504-87 |
| Class | PN10 / PN16 |
