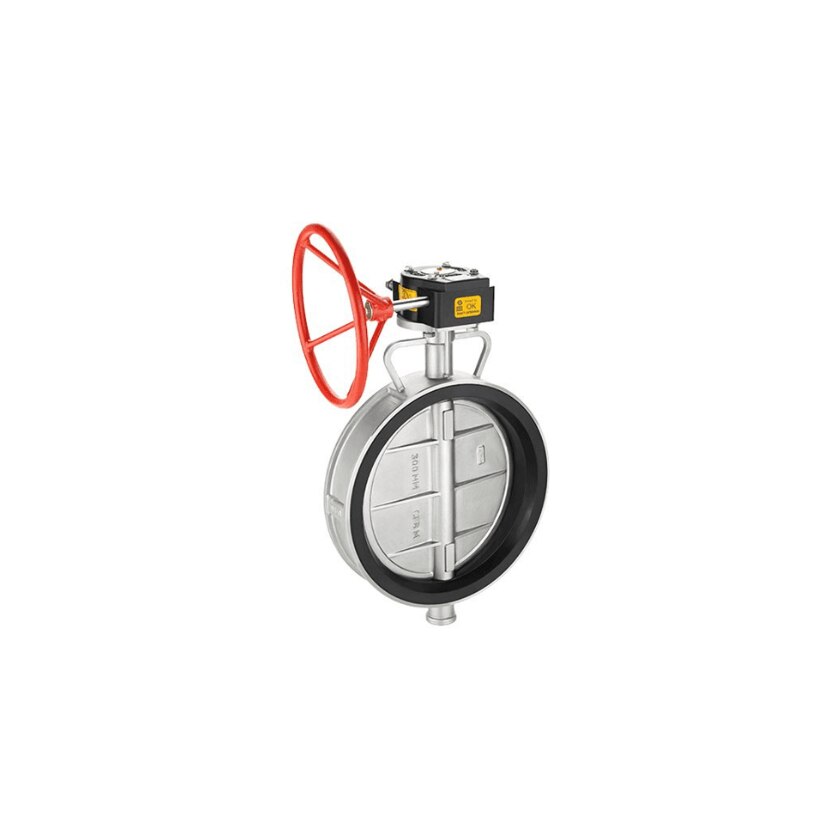

Gear Operated Butterfly Valve
In stock
Description
Gear Operated Butterfly Valve Manufacturer
A gear operated butterfly valve is a quarter-turn flow control valve in which the valve disc is operated using a worm-gear mechanism instead of a hand lever. It is mainly used for large-size valves and high-torque applications, where manual lever operation is difficult.
Specifications
| Technical Detail | ⬇️ |
|---|---|
| Operation | Gear Operated |
| Material of Composition | Cast Iron / Cast Steel / CF8 / CF8M |
| Design & Mfg. Standard | BS 5155 / API 609 / MSS SP-67 / EN 558-1, Series 20 |
| Optional Disc | Cast Iron / Cast Steel / CF8 / CF8M |
| Lining | Nitrile, Neoprene, EPDM, Hypalon, Silicon, Viton, PTFE |
| Size | 1-1/2" to 24" (DN40 to DN600) |
| End Connection | Wafer Type |
| Testing Standard | BS6755-1 / API 598 / AAWWA C 504-87 |
| Class | PN10 / PN16 |
