Description

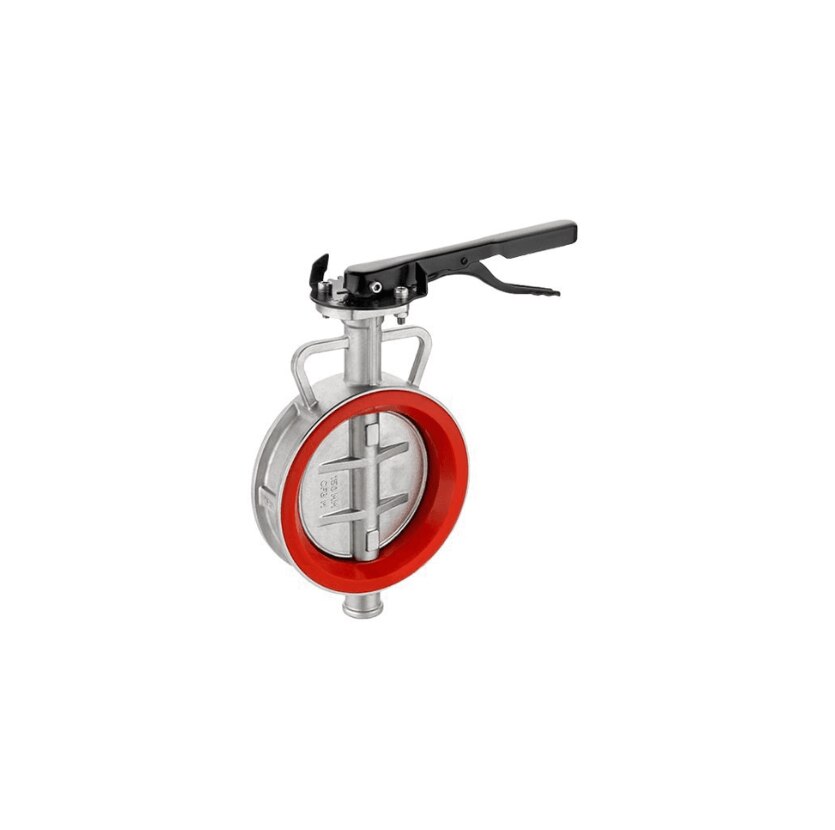

Lever Operated Butterfly Valve Manufacturer A lever operated butterfly valve is a quarter-turn flow control valve used to start, stop, or regulate the flow of liquids and gases in pipelines. It uses a disc (butterfly) mounted on a rotating shaft, and a manual lever handle to operate the valve quickly.

Specifications

Technical Detail ⬇️
Design & Mfg. Standard BS 5155 / API 609 / MSS SP-67 / EN 558-1, Series 20
Testing Standard BS6755-1 / API 598 / AAWWA C 504-87
Class PN10/ Pn16
Size 1-1/2" to 24" (DN40 to DN600)
End Connection Wafer Type
Material of Composition Cast Iron / Cast Steel / CF8 / CF8M
Optional Disc Cast Iron / Cast Steel / CF8 / CF8M
Lining Nitrile, Neoprene, EPDM, Hypalon, Silicon, Viton, PTFE
Operation Lever Operated
