Y Type Strainers Valves
In stock
Description

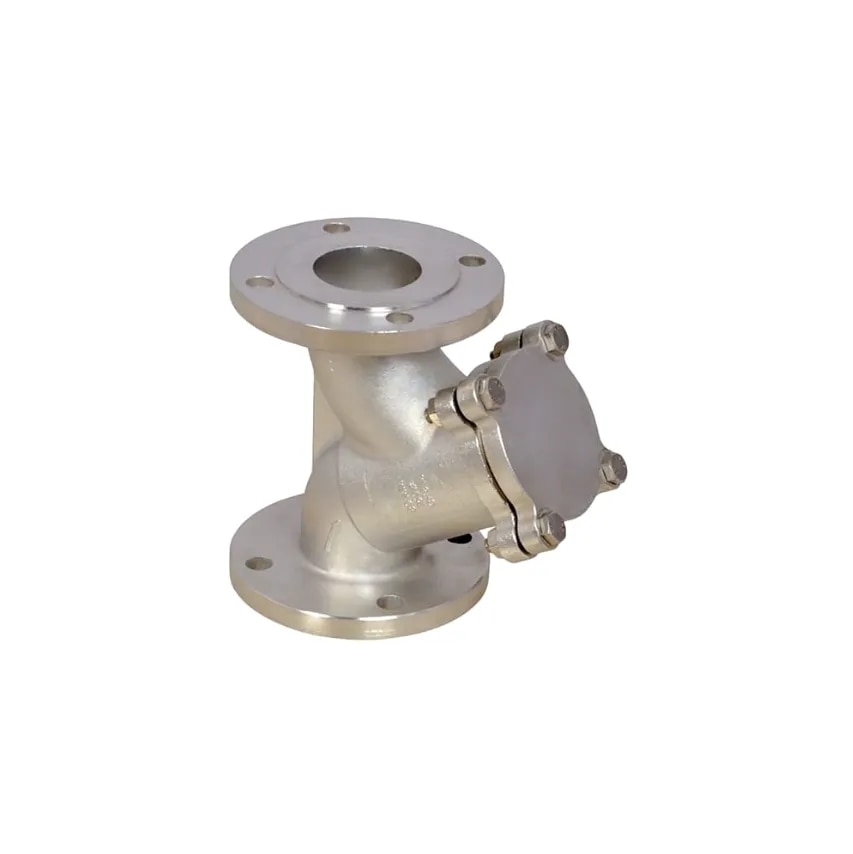

Y Type Strainers Valves Manufacturer
A Y-type strainer valve is a pipeline filtering device used to remove solid particles like dirt, rust, scale, or debris from fluids flowing through a pipe. It protects pumps, valves, meters, and other equipment from damage and blockage.
It is called “Y-type” because its body is shaped like the letter Y.
Specifications
| Material of Composition | Cast Iron / Cast Steel (WCB) / CF8 / CF8M |
|---|---|
| Size | 1” to 16” (Flanged End), 1/2” to 4” (Screwed End) |
| Design & Mfg. Standard | ASME B16.34 / ND40 |
| Pressure Class | 150# / 300# / 600# |
| Testing Standard | API 598 / BS EN ISO 12266-1 (BS 6755-1) |
