Description

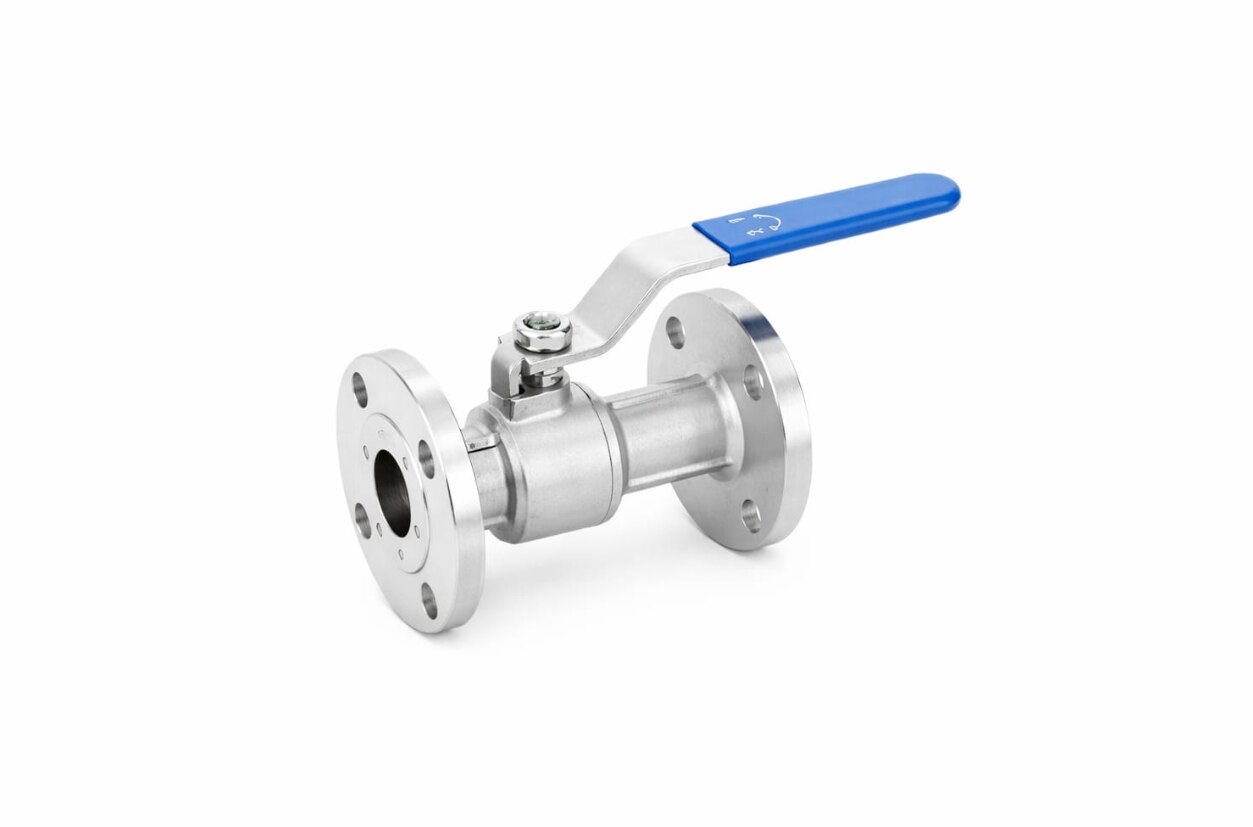

Single Piece Flanged End Ball Valve Manufacturer A single-piece flanged end ball valve is a quarter-turn isolation valve made with a one-piece (monoblock) body and flanged connections on both ends. It is mainly used for ON/OFF service in pipelines where simple design, strength, and leak-free operation are required.

Specifications

Technical Detail ⬇️
Design & Mfg. Standard BS EN ISO 17292 (BS 5351)
Testing Standard BS EN ISO 12266 (BS 6755 Part -1)/ 12569 / API 598
Class 150# / 300#
Size 1/2" to 4" (DN15 to DN100)
End Connecon Flanged End ASME B16.5 Class 150#/ 300# / E / F Table
Material of Composition WCB / CF8 / CF8M
Optional ISO Mounted Pad, Lockable Handle Operated
Operation Lever Operated
