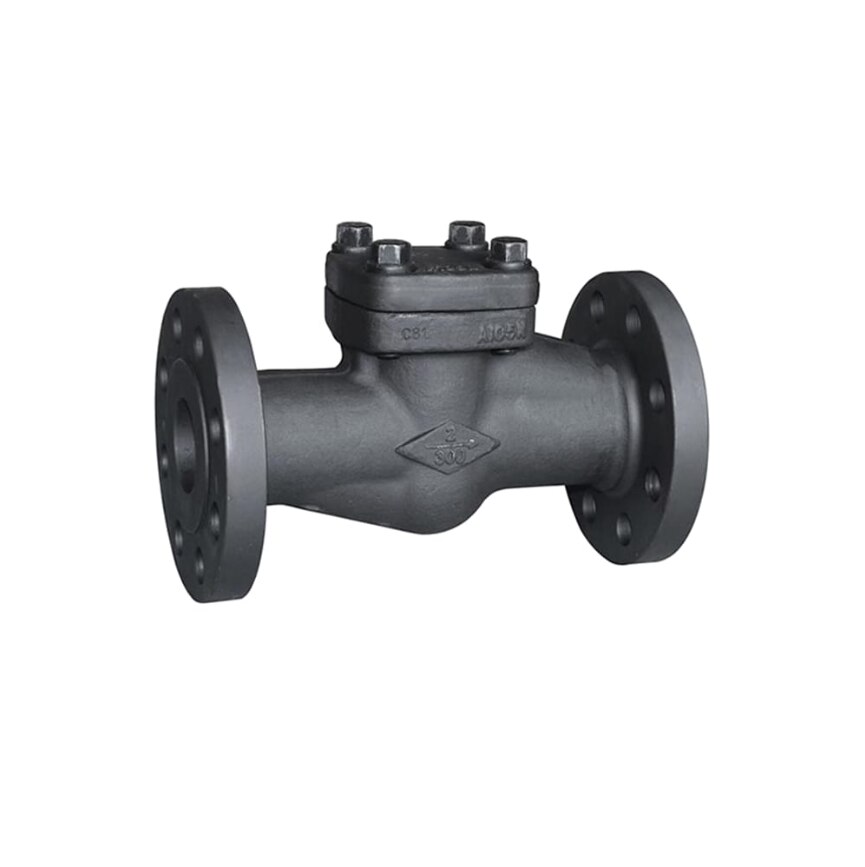

Forged Check Valve
In stock
Description
Forged Check Valve Manufacturer
A forged check valve is an automatic non-return valve manufactured from forged steel, designed to allow fluid flow in one direction only and prevent backflow in high-pressure and high-temperature services. Forged construction provides higher strength, better sealing, and superior reliability compared to cast check valves.
Specifications
| Material of Composition | ASTM A182 Gr. A105/ASTM A |
|---|---|
| End Optional | NPT Screwed End, Socket Weld End, Bu Weld End |
| Size | 1/2" TO 2" (DN15 to DN50) |
| End Connection | Screwed End / 150# |
| Testing Standard | API 598 |
| Pressure Class | 800# / 1500# / 2500# |
| Design & Mfg. Standard | API 602, ISO 17292 ASME B16.34 |
