CHECK VALVES

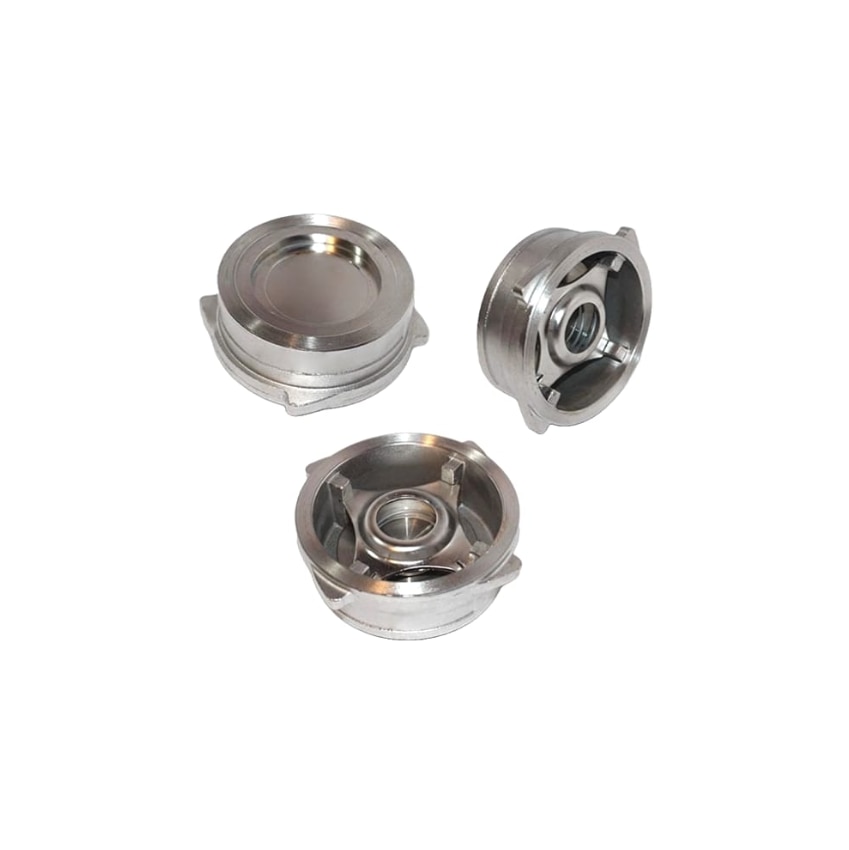

Disc Check Valve

In stock

Description

Disc Check Valve Manufacturer

A disc check valve is an automatic non-return valve that permits fluid flow in one direction only and prevents reverse flow using a disc (or piston) that moves linearly inside the valve body. It operates without any external power or manual control.

Specifications

Technical Specification - ⬇️
Material of CompositionCF8 / CF8M
Testing StandardAPI 598 / ISO 5208
Design & Mfg. StandardEN 558-2
Pressure Class150#
End ConnectionWafer Type
Size1" to 10" (DN40 to DN250)
